P series servoParker Servo System P Series

The new Parker P Series servo system combines compact, flexible, advanced functionality drives with high performance motors for a superior servo system, providing unique value to machine builders.

The P-Series drives operate with a variety of machine control architectures and offer sophisticated servo capability. A number of different feedback types are supported to drive a wide range of linear and rotary servo motors. The best matches are the P-Series motors, which include absolute encoders and populate motor nameplate data back to the drives for simplified commissioning.

Accurate and easy to use inertia detection leads to fast set-up of tuning parameters and minimal settling time. Advanced filtering and vibration suppression features can be used to increase throughput and improve positioning performance.

  • EtherCAT for high-speed motion bus
  • Step/Direction and 10V velocity/torque (2 inputs)
  • Indexer mode for pres-set positioning
  • USB communications for convenient set-up
  • Rotary or linear servo motor control
  • 400 to 3.5kW power output
  • BiSS-C and Endat2.2 absolute feedback
  • Quadrature encoder and Analog sin/cos
  • 120/240VAC single and three-phase power input
  • Configurable Dynamic Braking response
  • 16 digital inputs/ 8 outputs, 2analong in/out with pulse/indexer models
  • 8 inputs/ 4 outputs with EtherCAT models

Download P Series Datasheet

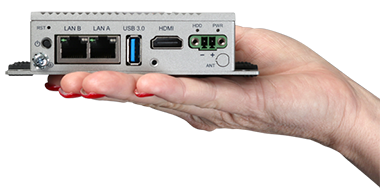

UNO Edge GatewayUNO Smart Factory Edge Gateway with Ignition Edge Onboard

Capture and Visualize Critical Data at the Remote Edge of the Network

With the shared benefits of smart hardware and software, model C-UNO2271-W10EDG-1 is available with Windows 10 ENT LTSB, 128G mSATA SSD and comes with Ignition Edge Onboard. UNO acts as a mini hub that connects various brands, models and platforms and communicates data with a single MQTT Sparkplug-B protocol. This allows various departments to subscribe to needed data.

World's smallest pre-configured, fanless, ruggedized, embedded computer
With the UNO Edge Gateway, you can easily extend your data collection, visualization and system management to the edge of the network - all while keeping costs down.

Download UNO Edge Gateway Datasheet

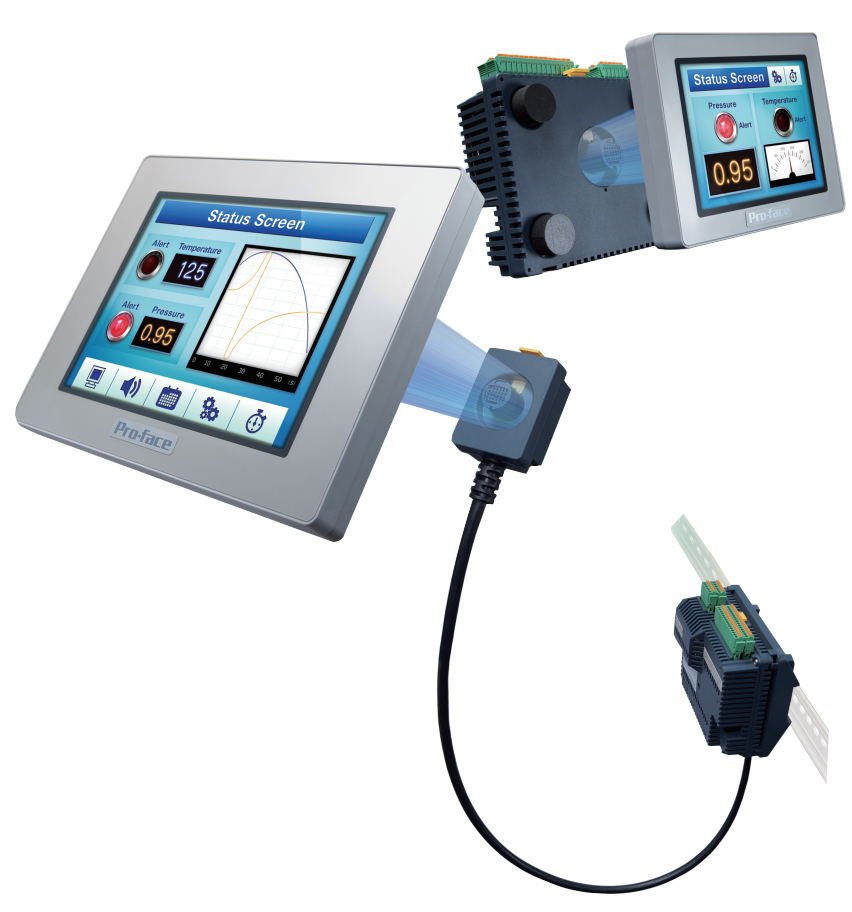

SS-EC StepSERVOLT4000M Operator Interface Plus Control

The LT4000 Series HMI offers 3.5" and 5.7" LED backlit LCD Displays. Display and Communication modules can be separated for quick mounting into a standard 22mm hole without the need to create a larger panel cutout. It offers a full graphics touch screen interface with a selection of serial or Ethernet connectivity.

LT4000M is a flexible operator interface plus control. The combination of HMI plus PLC saves panel space, wiring work and programming time. The easy 22mm modular mounting and separation cables offer location options never before possible.

These models are programmed with the versatile GP-Pro EX development software.
The LT4000M Rear Module can be used as a factory gateway device to collect data from several different networks that use multiple protocols and then relay the data to any PC.

Download LT4000M brochure



SS-EC StepSERVO Drives with EtherCAT®

SS-EC drives support CANopen over EtherCAT (CoE) control to allow them to be integrated into new and existing EtherCAT networks. Supported CiA 402 operating modes include Profile Position, Profile Velocity, Profile Torque, Cyclic Synchronous Position, and Cyclic Synchronous Velocity.

EtherCAT is an Ethernet-based fieldbus system suitable for real-time communications for automation applications.  StepSERVO technology is based on the closed loop servo control of high torque step motors.

Download SS-EC StepSERVO Datasheet

Parker HMR Actuator

Parker Hannifin's new, High Moment Rodless linear actuator series is one of the most user friendly and versatile actuator lines on the market today. With 5 different frame sizes, 2 different drive train options, multiple mounting and carriage options, and an IP54 protective cover option, along with a multitude of other customizable features the HMR was truly designed with flexibility in mind. Guided by two precision square rail bearings, the HMR has enormous moment and payload capacity bundled in a low profile, yet sleek package. The options of either a high-efficiency timing belt drive or a precision ball screw with multiple lead options allow the user to maximize performance within their system.

download HMR Datasheet

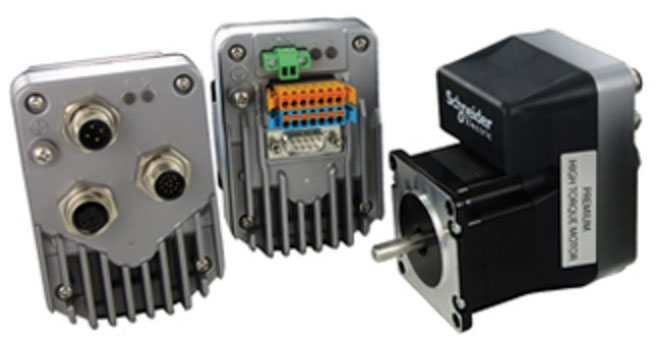

Lexium high torque motorsHigh Torque Motors

Lexium MDrive New Premium Motor Option

Robust Lexium MDrive products now include a premium high torque motor option for all NEMA 23 (57mm) motor versions. Torque range increases by up to 50%, while product compact size and format are maintained.

These products are especially well suited for industrial applications, including an IP65 rated version with circular M12 connectors. High torque stepper motors may replace servos, lowering system costs and delivering continuous torque at low speed. Bulky gearboxes may also be eliminated, for more cost and space savings. Products are programmable and networkable, satisfying motion control requirements in many new and existing applications. Communication protocols include:

Optionally, closed loop performance with hMTechnology is available for enhanced performance and energy savings.

more Lexium MDrive information
